Tonewinner SW-1000 10 Inch 200W Stereo Subwoofer Black

Tonewinner SW-1000 10 Inch 200W Stereo Subwoofer Black

Tonewinner SW-1000 10"" 200W Subwoofer

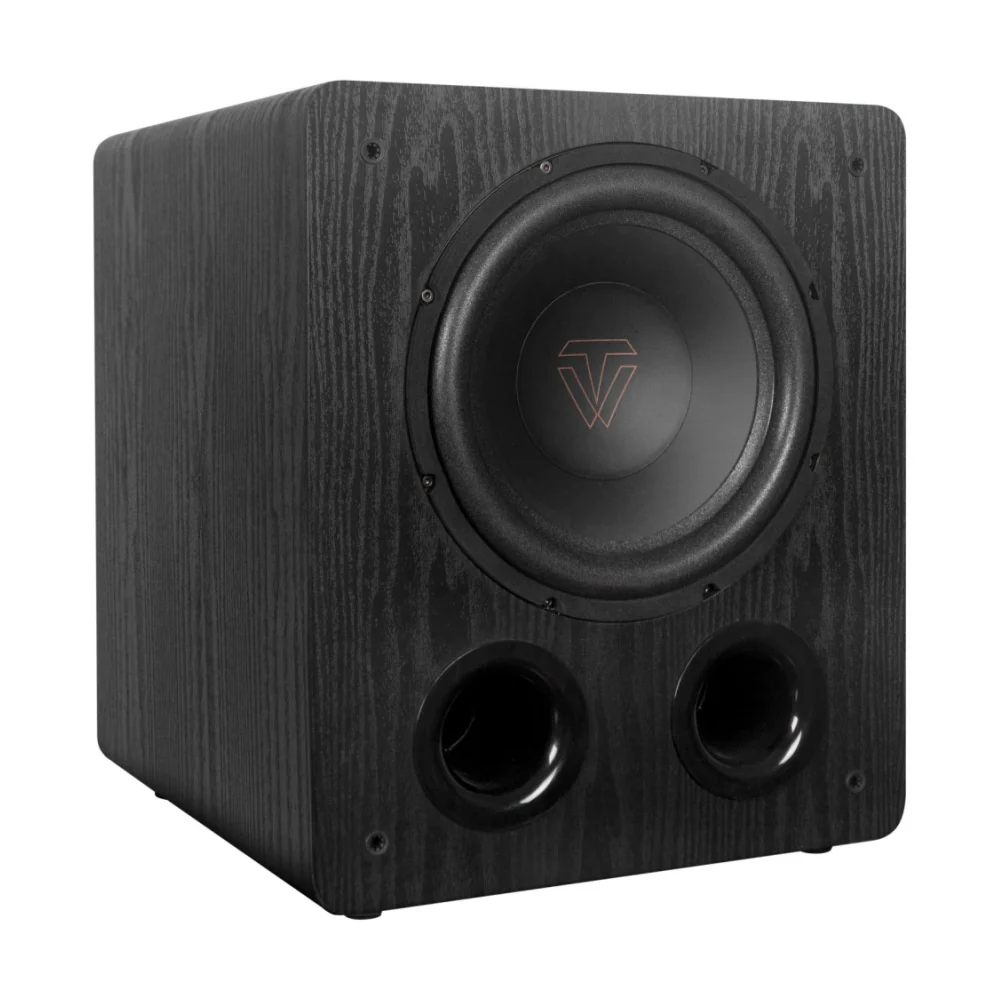

The Tonewinner SW-1000 is a 10-inch active subwoofer with a 200W class-H power amplifier. Constructed with solid materials by Tonewinner's experienced engineers to achieve long-term stunning low frequency sound.

Tonewinner has 30+ years of experience designing and manufacturing acoustic products for hi-fi and home theatre use, spanning power amplifiers, speakers, and more. This new range of subwoofers is the culmination of that expertise and presents a versatile subwoofer that shines in any entertainment scenario.

Key Features:

• 200W Class-H power amplifier
• 10"" front-firing driver
• Front-ported enclosure
• Adjustable 21Hz - 240Hz frequency response
• Line-in (RCA) + LFE (RCA & XLR) inputs
• Adjustable Frequency
• Phase switch (0°/180°)

Finesse to Impress

Equipped with a 200W class-H analogue amplifier and a robust 10"" driver, the SW-1000 delivers solid bass all the way down to 21Hz. This subwoofer provides a deep and impactful bass response that adds a new dimension to your movies, music, and games.

However, the SW-1000 is designed to impress both visually and acoustically, as well as continue to impress even after countless listening sessions. Like other Tonewinner subwoofers, it is presented in a sleek black ash finish and a protective mesh grill. The SW-1000 seamlessly integrates into any home theatre or audio setup, professional or casual. The sturdy MDF cabinet, along with two carefully designed ports, optimises airflow and reduces unwanted resonances.

Plays Nicely With Any System

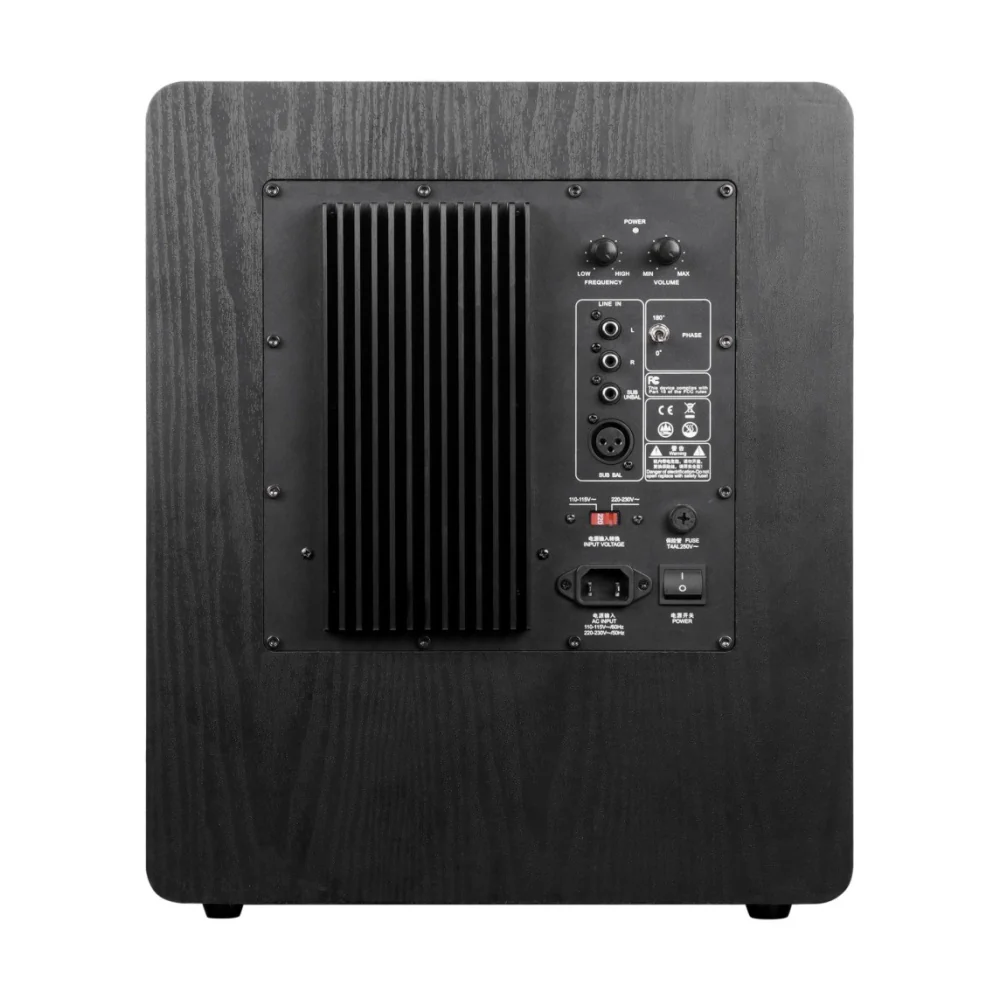

On the rear panel, you'll find a versatile range of connections that allow the SW-1000 to play nicely with most amplifiers and processors. In addition to the individual Line-In and LFE inputs, which will support a single-ended or Y-split cable from a preamp or integrated stereo/surround amplifier, the subwoofer will also accept a balanced XLR LFE connection, typically found on advanced preamp processors.

Tonewinner

Tonewinner was one of the first manufacturers in China to obtain official certifications for advanced HDMI technologies such as Dolby Atmos, Dolby Digital, Dolby TrueHD, DTS:X, DTS Master to name just a few!

The unabashedly Chinese brand is showing that premium components don't need to cost an arm and a leg! Tonewinner aims to bring premium high end audio at prices which won't make your wallet wince. These high end audio components are not only designed for a premium audio experience but also for grunt! Packing not only superior audio and the latest technology, but plenty of 'oomph' too!

The Tonewinner SW-1000 is a 10-inch active subwoofer with a 200W class-H power amplifier and delivers solid bass all the way down to 21Hz providing a deep and impactful bass response that adds a new dimension to your movies, music, and games.

Model
AD-1PA+

Channels
Stereo (2)

Output power (Class A)
100W @ 8Ω

Output power (Class AB)
300W RMS/channel @ 8Ω, 20Hz-20kHz, THD < 0.1%, two driven channels
500W RMS/channel @ 4Ω, 20Hz-20kHz, THD < 0.1%, one driven channel
320W RMS/channel @ 8Ω, THD < 0.1%, one driven channel

Bias selection
Class A
Class AB
Auto

THD
≤0.008% (1kHz, normal working condition)

SNR
≥108dB (A-weighted, balanced input)
≥110dB (A-weighted, unbalanced input)

Frequency
10Hz-100kHz(+1/-3dB)

Impedance
8 ohms

Gain
29.5dB±1dB

Channel separation
≥80dB

Inputs
Single-ended stereo RCA
Balanced stereo XLR

Speaker output modes
A
B
A+B

Trigger
Input and output

Power consumption
Class A 260-300W or Class AB 70W-110W

Standby power consumption
≤ 0.5W

Dimensions W × H × D
444 x 294 x 449 mm

Net weight
42kg

Driver
• Front-firing High-Performance 10"" Driver (polypropylene coated paper-cone)
• 35mm voice coil
• Foam surround

Frequency Response
21-240 Hz

Amplifier
200W Class-H

Front Grill
Protective Mesh Grill

Colour
Black Ash Finish

Cabinet
MDF

Enclosure
2x Ports

Power Supply
Switchable between 110V (60Hz) and 220V (50Hz)

Inputs
XLR & RCA

Dimensions W x H x D
360 x 432 x 432 mm

Weight
23kg

Included Accessories
• Protective Mesh Grill
• Power Cord
• Manual

"

Includes:
1 x Stereo Subwoofer
