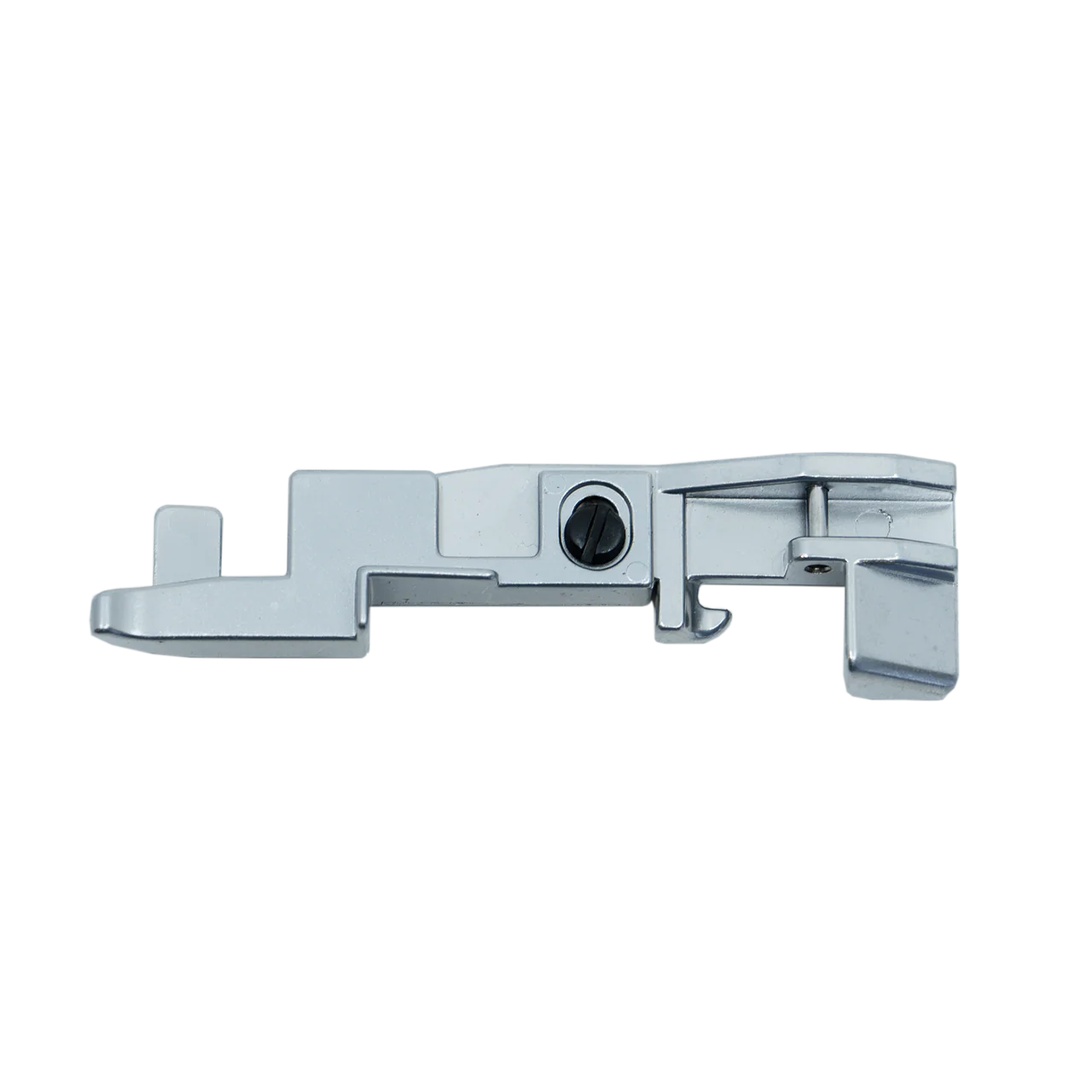

SINGER(R) Blind Hem Overlocker Presser Foot

This foot is for sewing cuffs on knit fabrics, and hemming where seam should not be visible.

Suits the following models:

14HD Series 14U with change of shank. Required shank: 554239 14SH Series SE017

How to use:

Preparing the machine:

• Needle: Right needle
• Stitch type: Three-thread overlock or three-thread flatlock
• Stitch length: 4mm
• Differential feed lever: normal position
• Upper knife: working position

Sewing:

1. Fold fabric as shown and place it under the presser foot.
2. Loosen the screw and adjust edge guide so that needle will penetrate the fabric close to the folded edge.
3. Guide fabric lightly while sewing so that the needle will just catch the edge of the fold.
