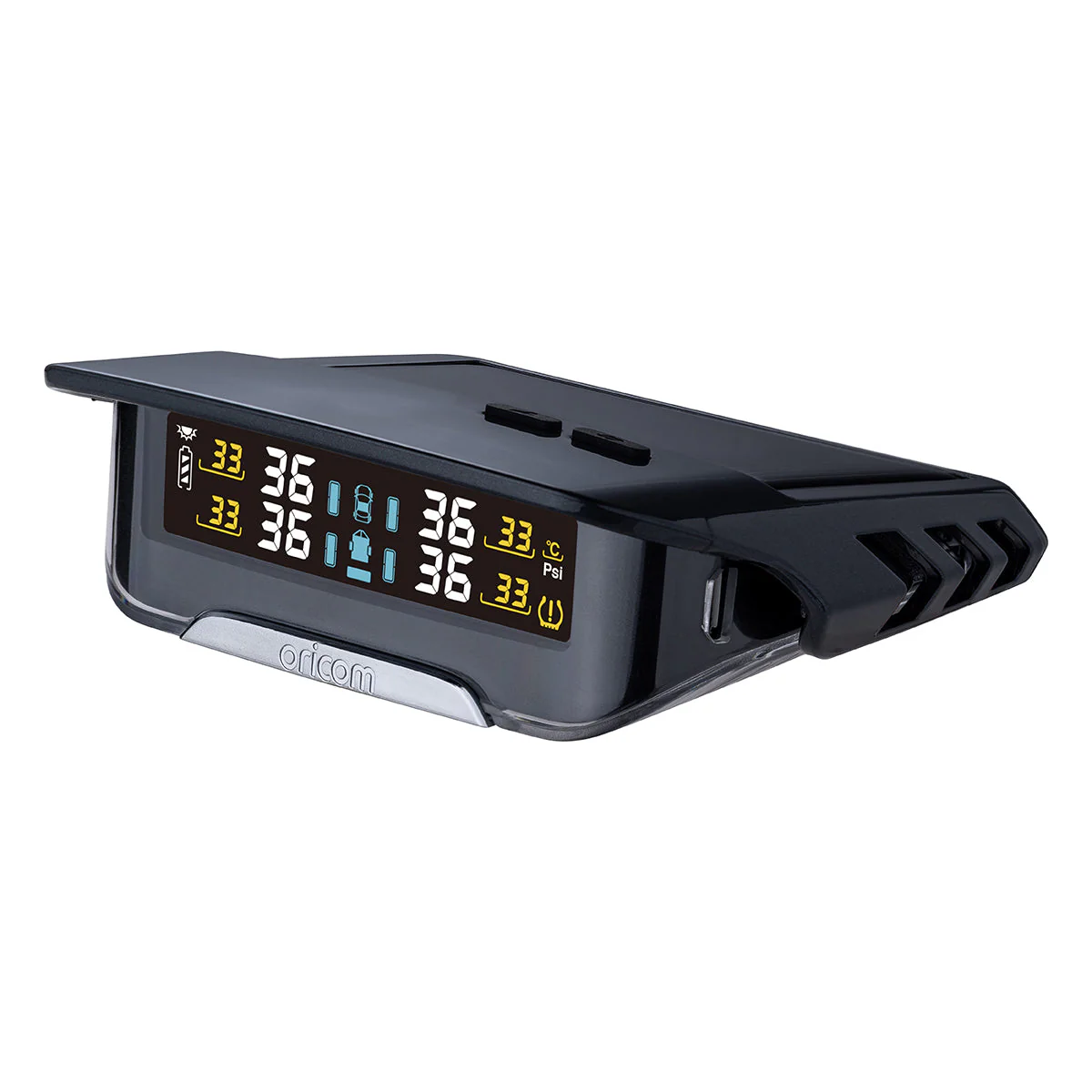

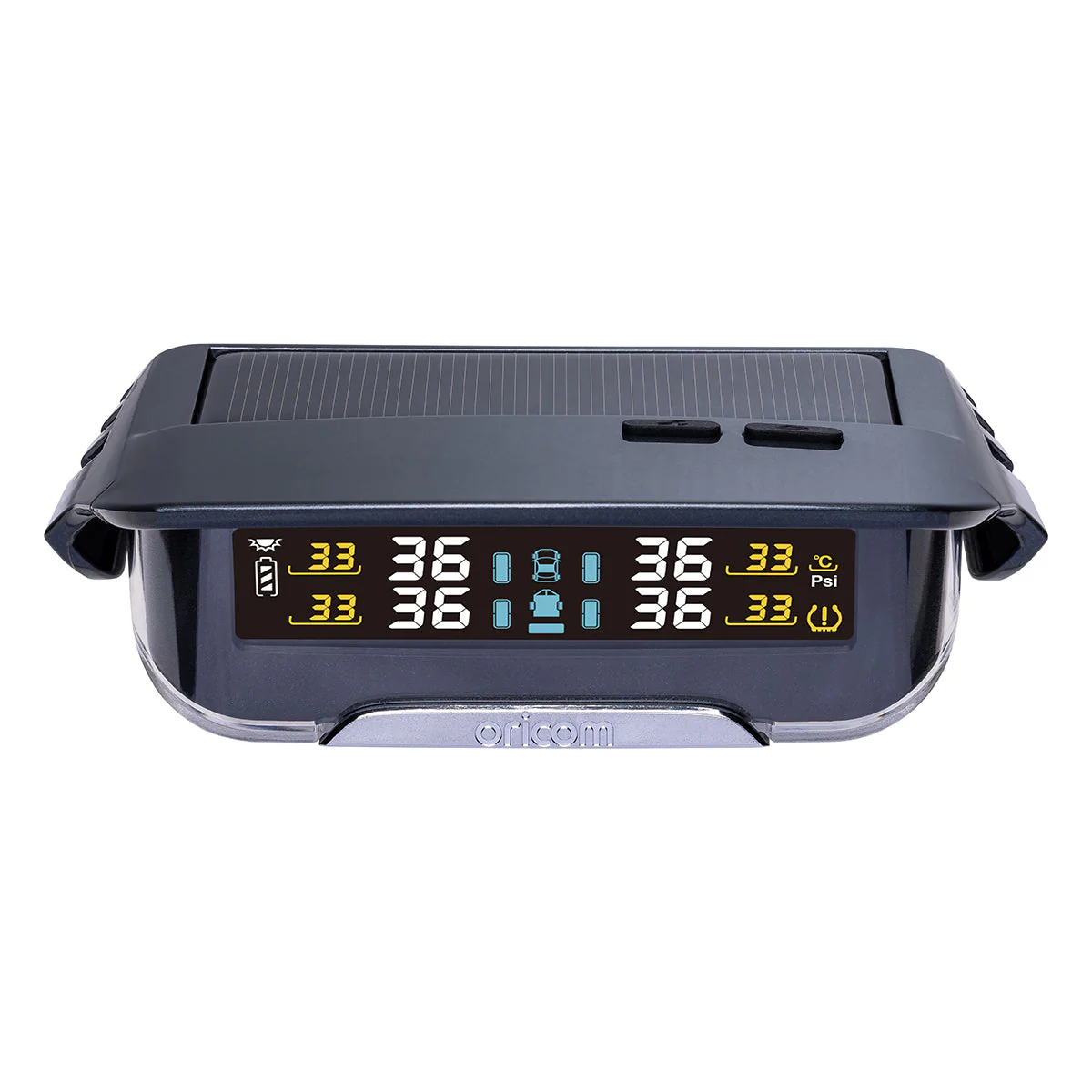

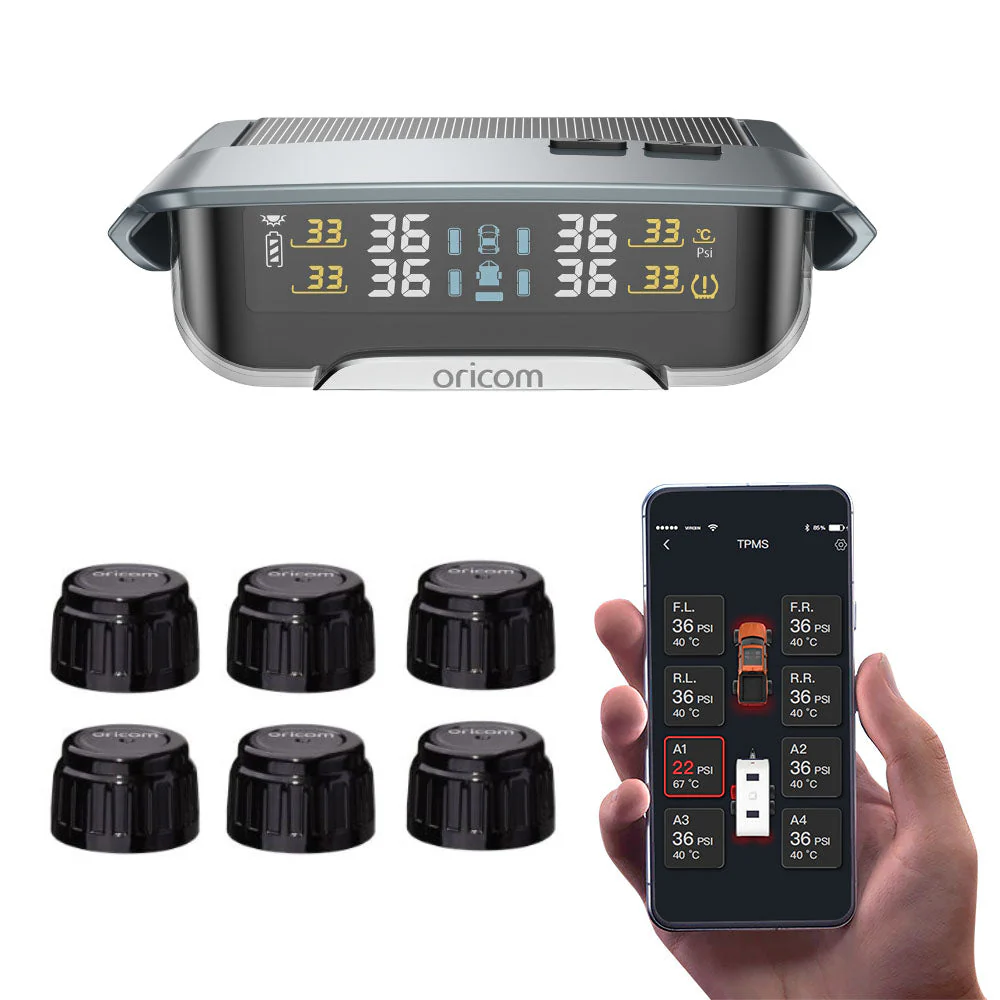

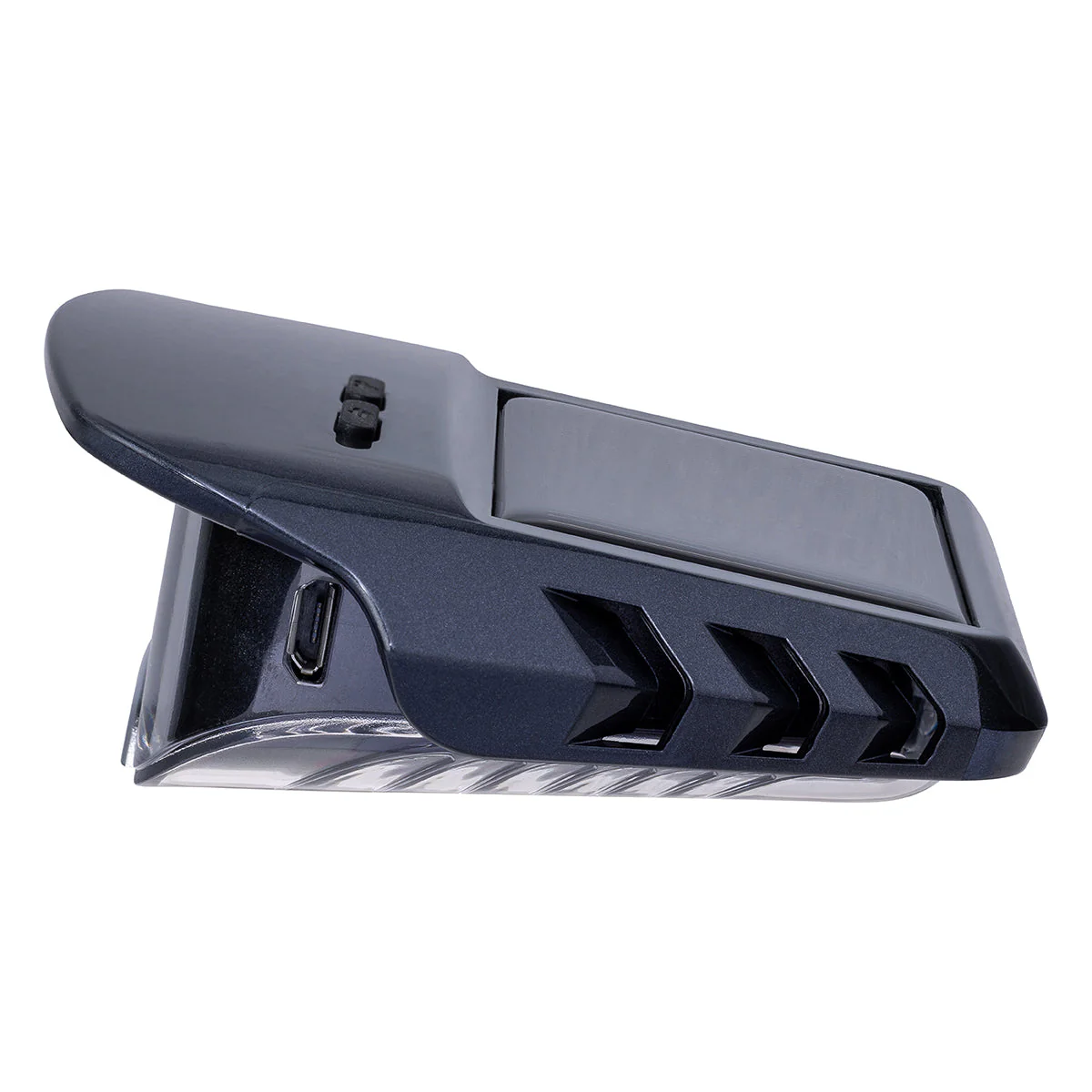

Oricom TPMS10-6E Tyre Pressure Monitoring System with 6 External Sensors (with APP Functionality) + Repeater Bundle Pack
Oricom TPMS10-6E Tyre Pressure Monitoring System with 6 External Sensors (with APP Functionality) + Repeater Bundle Pack
TPMS10-6E Features:
• Compatible with up to 10 tyre sensors
• Easy setup with the free app
• Switch between Offroad and Normal modes to
save tyre pressure settings

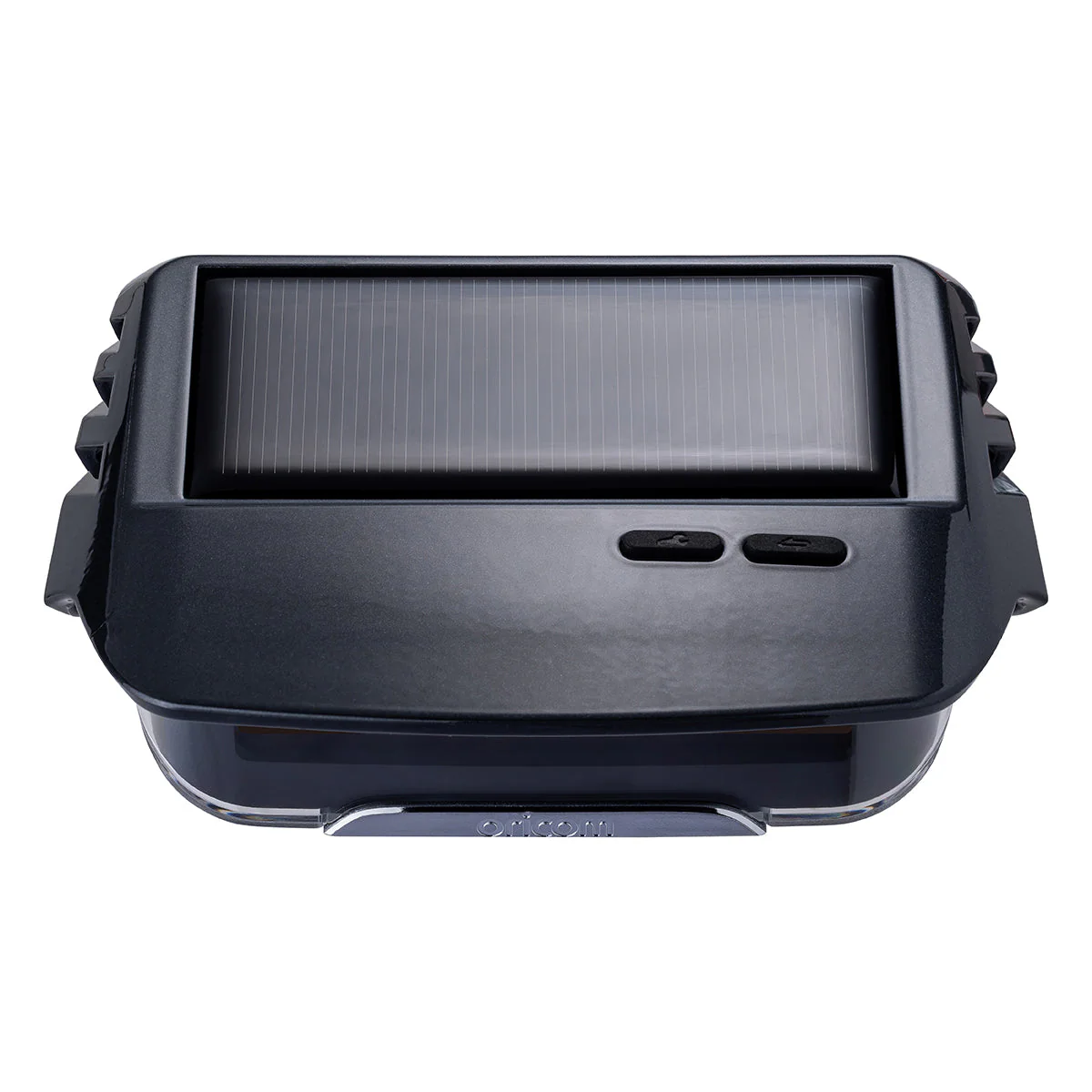

• Compact solar powered display unit
• Long lasting display unit battery life
• Wireless transmission between sensor
and display unit
• Adjustable threshold value
• Auto brightness on display
• Monitors pressure and temperature
• Visual and audio alarm
• Optional micro USB input
• Intelligent sleeping mode for power saving
• High/ low pressure warning
• Sensor failure warning
• 12 Month warranty
Technical Specifications:
Sensor:
Operating frequency: 433.92MHz ± 0.05MHz
Operating voltage: 2.3 ~ 3.3V
Operating current: ≤1 2mA
Static current: ≤0.5uA
Operating temperature: -20˚C ~ +80˚C
Storage temperature: -40˚C ~ +80˚C
Battery model: CR1632
Display:
Operating frequency: 433.92MHz ±0.05MHz, 2.4GHz BLE
Operating current: ≤32mA
Static current: ≤45μA
Operating voltage: 2.6 ~ 3.6V
Operating temperature: -20˚C ~ +70˚C
Storage temperature: -40˚C ~ +95˚C
Built-in battery capacity: 500mAh
Charging temperature: -10˚C ~ 65˚C
Solar charging current: ≥15mA (at 5500LX 25˚C)
USB Charging current: ≤70mA
WARNING - KEEP BUTTON BATTERIES OUT OF REACH OF CHILDREN
- Button/coin cell batteries are hazardous and must be kept out of reach of children at all times, whether the battery is new or used.
- If it is suspected a button/coin cell battery has been swallowed or placed inside any part of the body, seek medical attention immediately or contact the Australian Poisons Information Centre on 131126 for 24/7 fast, expert advice. These batteries can cause severe or fatal injuries in 2 hours or less if swallowed or placed inside any part of the body.
- Regularly examine devices and make sure the battery compartment is correctly secured, e.g. that the screw or other mechanical fastener is tightened. Do not use if compartment is not secure.
- Dispose of used button batteries immediately and safely out of the reach of children. A battery can still be dangerous even when it can no longer operate the device.
- Tell others about the risk associated with button batteries and how to keep their children safe.
Original: $275.19
-70%$275.19
$82.56
Description
TPMS10-6E Features:
• Compatible with up to 10 tyre sensors
• Easy setup with the free app
• Switch between Offroad and Normal modes to
save tyre pressure settings
• Compact solar powered display unit
• Long lasting display unit battery life
• Wireless transmission between sensor
and display unit
• Adjustable threshold value
• Auto brightness on display
• Monitors pressure and temperature
• Visual and audio alarm
• Optional micro USB input
• Intelligent sleeping mode for power saving
• High/ low pressure warning
• Sensor failure warning
• 12 Month warranty
Technical Specifications:
Sensor:
Operating frequency: 433.92MHz ± 0.05MHz
Operating voltage: 2.3 ~ 3.3V
Operating current: ≤1 2mA
Static current: ≤0.5uA
Operating temperature: -20˚C ~ +80˚C
Storage temperature: -40˚C ~ +80˚C
Battery model: CR1632
Display:
Operating frequency: 433.92MHz ±0.05MHz, 2.4GHz BLE
Operating current: ≤32mA
Static current: ≤45μA
Operating voltage: 2.6 ~ 3.6V
Operating temperature: -20˚C ~ +70˚C
Storage temperature: -40˚C ~ +95˚C
Built-in battery capacity: 500mAh
Charging temperature: -10˚C ~ 65˚C
Solar charging current: ≥15mA (at 5500LX 25˚C)
USB Charging current: ≤70mA
WARNING - KEEP BUTTON BATTERIES OUT OF REACH OF CHILDREN
- Button/coin cell batteries are hazardous and must be kept out of reach of children at all times, whether the battery is new or used.
- If it is suspected a button/coin cell battery has been swallowed or placed inside any part of the body, seek medical attention immediately or contact the Australian Poisons Information Centre on 131126 for 24/7 fast, expert advice. These batteries can cause severe or fatal injuries in 2 hours or less if swallowed or placed inside any part of the body.
- Regularly examine devices and make sure the battery compartment is correctly secured, e.g. that the screw or other mechanical fastener is tightened. Do not use if compartment is not secure.
- Dispose of used button batteries immediately and safely out of the reach of children. A battery can still be dangerous even when it can no longer operate the device.
- Tell others about the risk associated with button batteries and how to keep their children safe.
