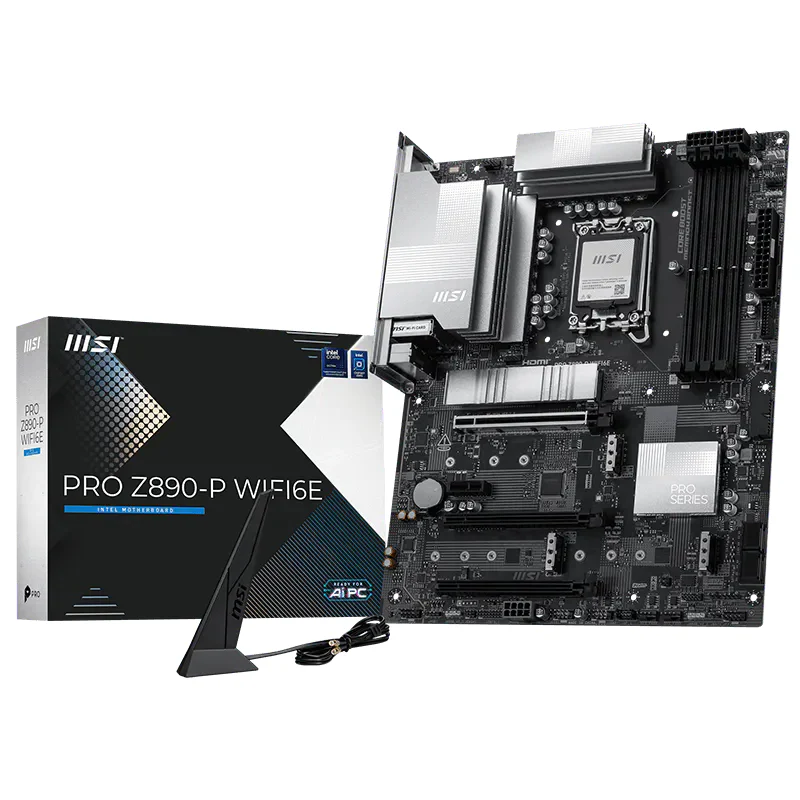

MSI PRO Z890-P WIFI6E LGA 1851 ATX Motherboard (PRO Z890-P WIFI6E)

CPU

Supports Intel ® Core „¢ Ultra Processors (Series 2)
LGA 1851

Memory

4x DDR5 UDIMM, Maximum Memory Capacity 256GB
Memory Support DDR5 9200 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s
Max. overclocking frequency:
€¢ 1DPC 1R Max speed up to 9200+ MT/s
€¢ 1DPC 2R Max speed up to 7200+ MT/s
€¢ 2DPC 1R Max speed up to 6400+ MT/s
€¢ 2DPC 2R Max speed up to 5600+ MT/s

Supports Intel ^® POR Speed and JEDEC Speed
Supports Memory Overclocking and Intel ^® XMP 3.0
Supports Dual-Controller Dual-Channel mode
Supports Non-ECC, Un-buffered memory
Supports CUDIMM

€¢ The DIMM slots on this motherboard only have single-sided latches.
€¢ Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product €™s Support page or visit https://www.msi.com/support/.

Onboard Graphics

1x HDMI „¢
Support HDMI „¢ 2.1, maximum resolution of 4K 60Hz*
1x DisplayPort
Support DisplayPort 1.4, maximum resolution of 4K 60Hz*
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

Slot

3x PCI-E x16 slot
1x PCI-E x1 slot
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
PCI_E4 Gen PCIe 4.0 supports up to x4 (From Chipset)

Audio

Realtek ^® ALC897 Codec
7.1-Channel High Definition Audio

Storage

4x M.2
M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
4x SATA 6G

*Please refer to the manual for M.2 SSD heatsink restrictions.

RAID

Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices

USB

4x USB 2.0 (Rear)
4x USB 2.0 (Front)
2x USB 5Gbps Type A (Rear)
4x USB 5Gbps Type A (Front)
1x USB 10Gbps Type A (Rear)
1x USB 10Gbps Type C (Rear)
1x USB 20Gbps Type C (Front)

LAN

Realtek ^® 8126 5Gbps LAN

Internal IO

1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x Power Connector(PCIE_PWR 8pin)
1x CPU Fan
1x Combo Fan (Pump_Sys Fan)
5x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Tuning Controller connector(JDASH)
3x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
4x USB 5Gbps Type A ports
1x USB 20Gbps Type C ports

Wireless LAN & Bluetooth

Wi-Fi 6E module
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax

Supports Bluetooth ^® 5.3**, FIPS, FISMA
* Wi-Fi 6E 6GHz may depend on every country €™s regulations and will be ready in Windows 11.
** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.

LED Feature

4x EZ Debug LED

Back Panel Ports

DisplayPort

Mouse / Keyboard

USB 2.0

5G LAN

Wi-Fi / Bluetooth

Audio Connectors

Flash BIOS Button

HDMI „¢

USB 2.0

USB 5Gbps Type-A

USB 10Gbps Type-C

USB 10Gbps Type-A

Operating System

Support for Windows ^® 11 64-bit

Box Content

MSI PRO Z890-P WIFI6E Motherboard

European Union Regulatory Notice

Quick Installation Guide

EZ Wi-Fi Antenna

4x M.2 Screw and Standoff Sets

2 x SATA Cables

1 to 2 EZ Conn-Cable (V1)

PCB Info

ATX
243.84mmx304.8mm
