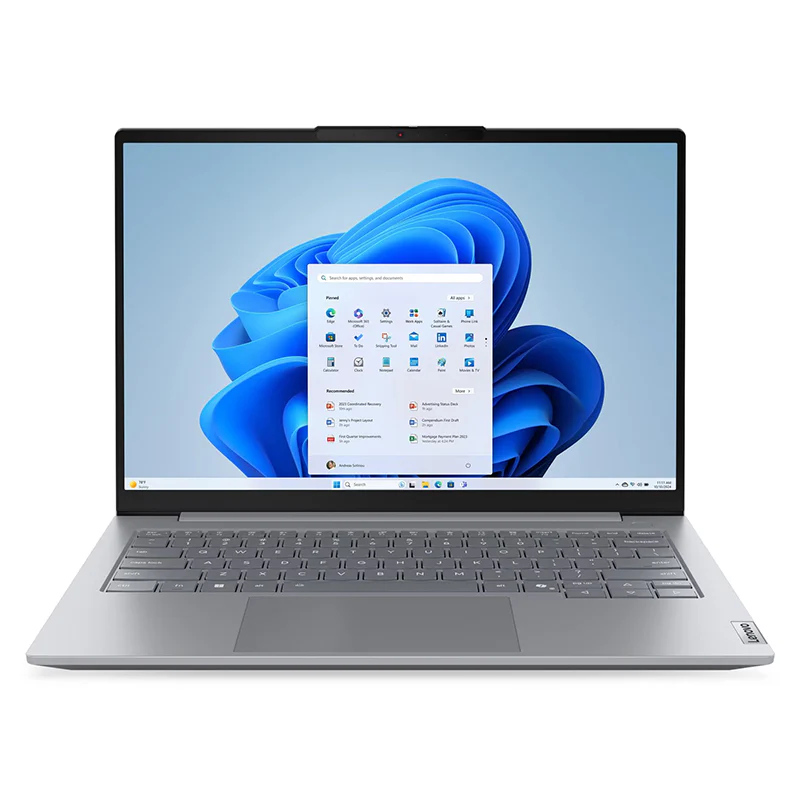

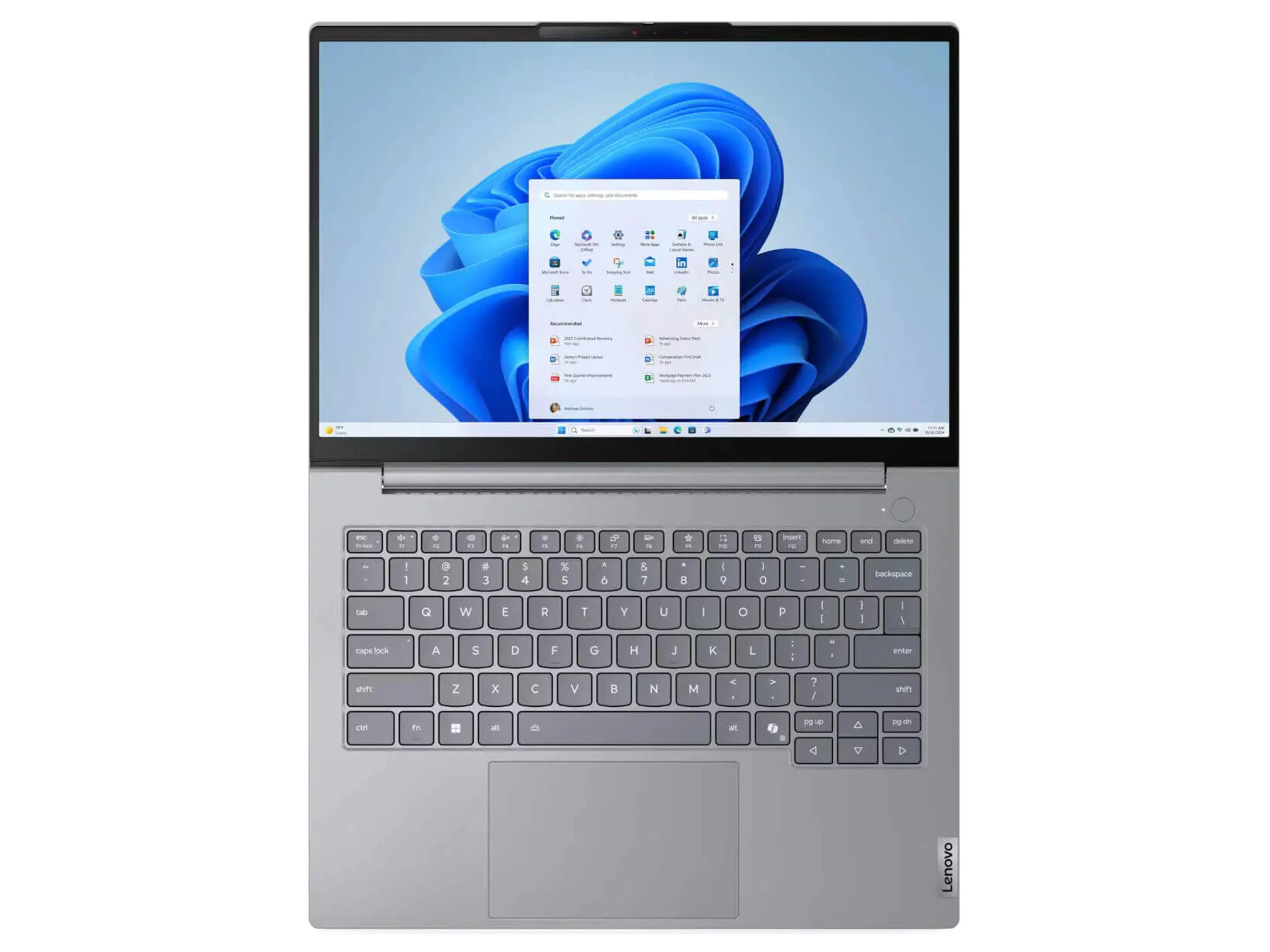

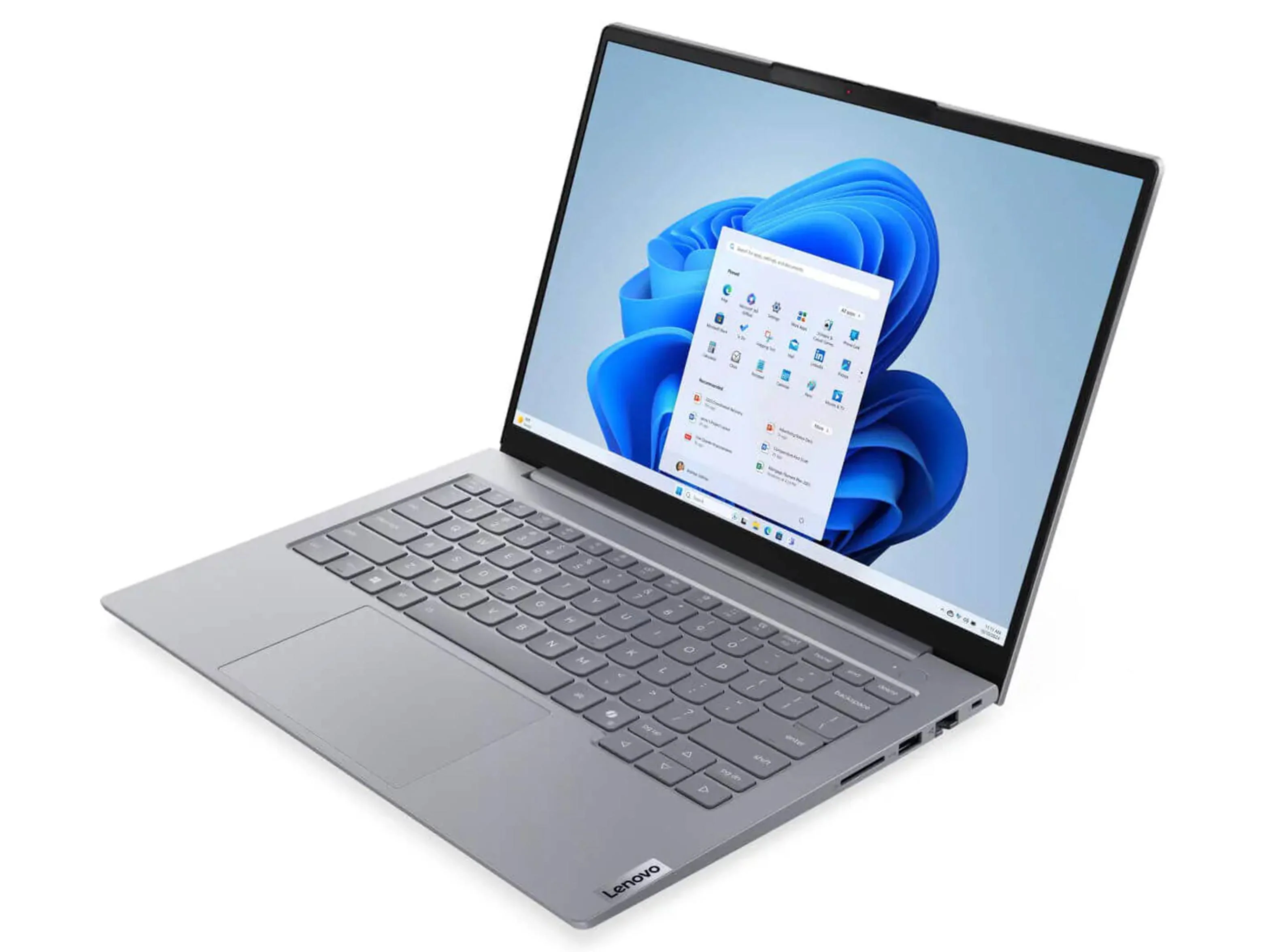

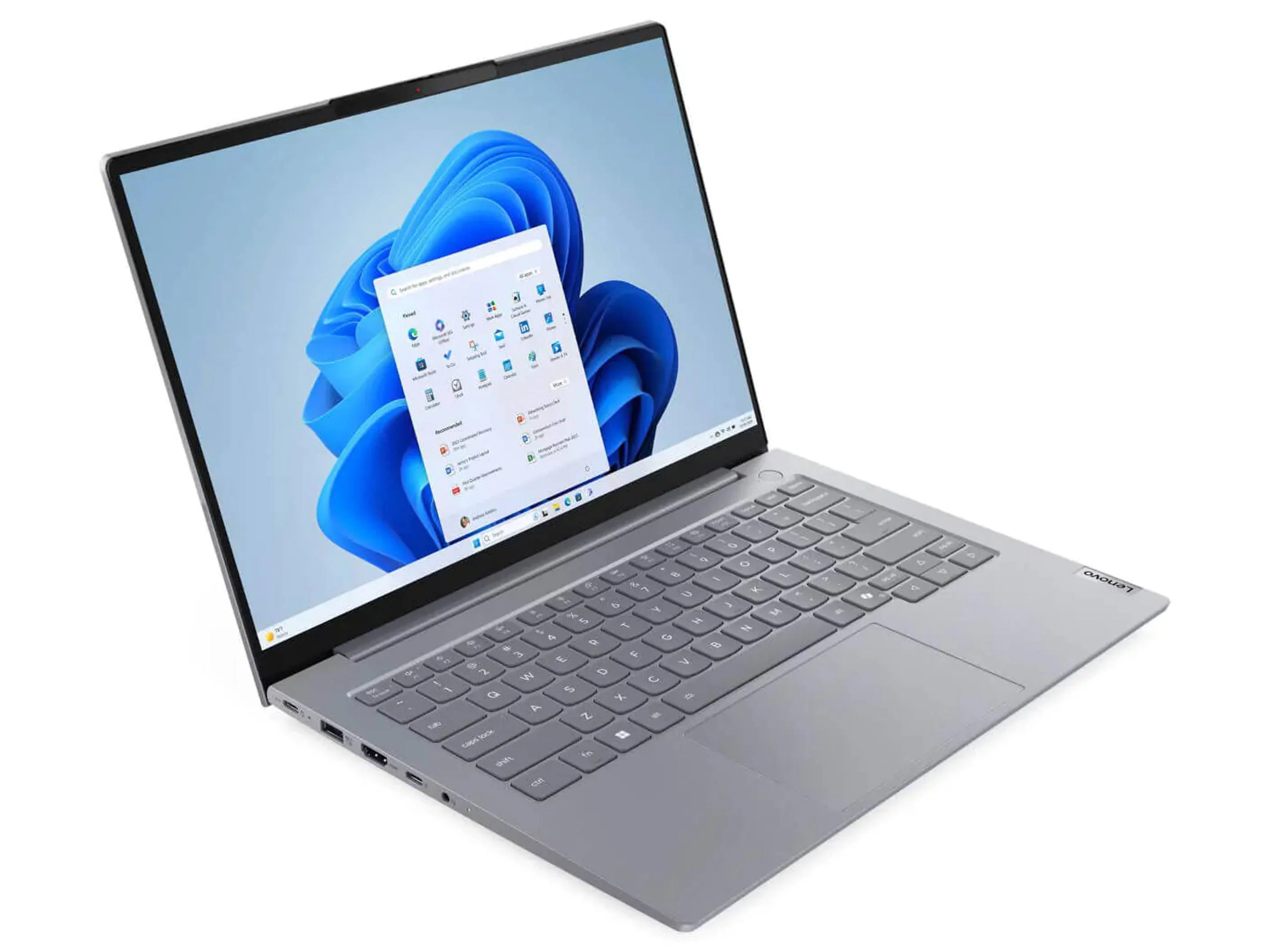

Lenovo ThinkBook 14 Gen 9 14in WUXGA Intel Core 7 240H 512GB SSD 32GB RAM W11P Laptop (21UY005WAU)
Lenovo ThinkBook 14 Gen 9 14in WUXGA Intel Core 7 240H 512GB SSD 32GB RAM W11P Laptop (21UY005WAU)
SPECIFICATIONS:
PERFORMANCE | |
Processor |
Intel Core ¢ 7 240H, 10C (6P + 4E) / 16T, P-core 2.5 / 5.2GHz, E-core 1.8 / 4.0GHz, 24MB Intel ® Smart Cache |
AI PC Category |
Non-AI PC |
NPU |
None |
Graphics |
Integrated Intel ® Graphics |
Chipset |
Intel ® SoC Platform |
Memory |
2x 16GB SODIMM DDR5-5600 |
Memory Slots |
Two DDR5 SODIMM slots, dual-channel capable |
Max Memory |
Up to 64GB DDR5-5600 |
Storage |
512GB SSD M.2 2242 PCIe ® 4.0x4 NVMe ® |
Storage Slot |
Two M.2 slots ¢ One M.2 2242 PCIe ® 4.0 x4 slot ¢ One M.2 2280 PCIe ® 4.0 x4 slot |
Max Storage Support |
Up to two drives, 2x M.2 SSD ¢ M.2 2242 SSD up to 2TB ¢ M.2 2280 SSD up to 2TB |
Card Reader |
SD Card Reader |
Audio Chip |
High Definition (HD) Audio, Realtek ® ALC3287 codec |
Speakers |
Stereo speakers, 2W x2, Dolby Audio ¢ |
Microphone |
2x, Array |
Camera |
FHD 1080p + IR Hybrid with Privacy Shutter |
Battery |
48Wh |
Power Adapter |
65W USB-C ® (3-pin) |
Special Features |
Modern Standby |
DESIGN | |
Display |
14" WUXGA (1920x1200) IPS 400nitsAnti-glare, 45% NTSC |
Touchscreen |
None |
Screen-to-Body Ratio |
90% |
Color Calibration |
No Color Calibration |
Pen |
Pen Not Supported |
Keyboard |
Backlit, English |
Touchpad |
Buttonless Mylar ® surface multi-touch touchpad, supports Precision TouchPad (PTP), 75 x 120 mm (2.95 x 4.72 inches) |
Dimensions (WxDxH) |
313.5 x 224 x 17.5 mm (12.34 x 8.82 x 0.69 inches) |
Weight |
Starting at 1.36 kg (2.99 lbs) |
Case Color |
Arctic Grey |
Case Material |
Aluminium (Top), PC-ABS (Bottom) |
Surface Treatment |
Anodizing Sandblasting (Top), Texture (Bottom) |
SOFTWARE | |
Operating System |
Windows ® 11 Pro, English (US) / English (UK) |
Bundled Software |
Office Trial |
CONNECTIVITY | |
WLAN + Bluetooth |
Intel ® Wi-Fi ® 6E AX211, 802.11ax 2x2 + BT5.3 |
WWAN |
WWAN Not Supported |
Ethernet |
100/1000M (RJ-45) |
Standard Ports |
1x USB-A (USB 5Gbps), Always On 1x USB-A (USB 5Gbps) 1x USB-C ® (USB 10Gbps), with USB PD 45-65W and DisplayPort ¢ 1.4 1x Thunderbolt ¢ 4, with USB PD 45-65W and DisplayPort ¢ 1.4 1x HDMI ® 2.1, up to 4K/60Hz 1x Headphone / microphone combo jack (3.5mm) 1x Ethernet (RJ-45) 1x SD card reader |
Docking |
Various docking solutions supported via Thunderbolt ¢ or USB-C ®. For more compatible docking solutions, please visit Docking for ThinkBook ® 14 G9 IRL |
SECURITY & PRIVACY | |
Security Chip |
Discrete TPM 2.0 Enabled |
Physical Locks |
Kensington Nano Security Slot ¢, 2.5 x 6 mm |
Fingerprint Reader |
Touch Style, Match-on-Chip, Integrated in Power Button |
Other Security |
Camera privacy shutter IR camera for Windows ® Hello (facial recognition) |
MANAGEABILITY | |
System Management |
Non-vPro ® |
ACCESSORIES | |
Bundled Accessories |
None |
CERTIFICATIONS | |
Green Certifications |
ENERGY STAR ® 9.0 EPEAT ¢ Gold Registered ErP Lot 6/26 RoHS compliant TCO Certified, generation 10 |
Mil-Spec Test |
MIL-STD-810H military test passed |
Other Certifications |
TÃV Rheinland ® Low Blue Light (Software Solution) |
