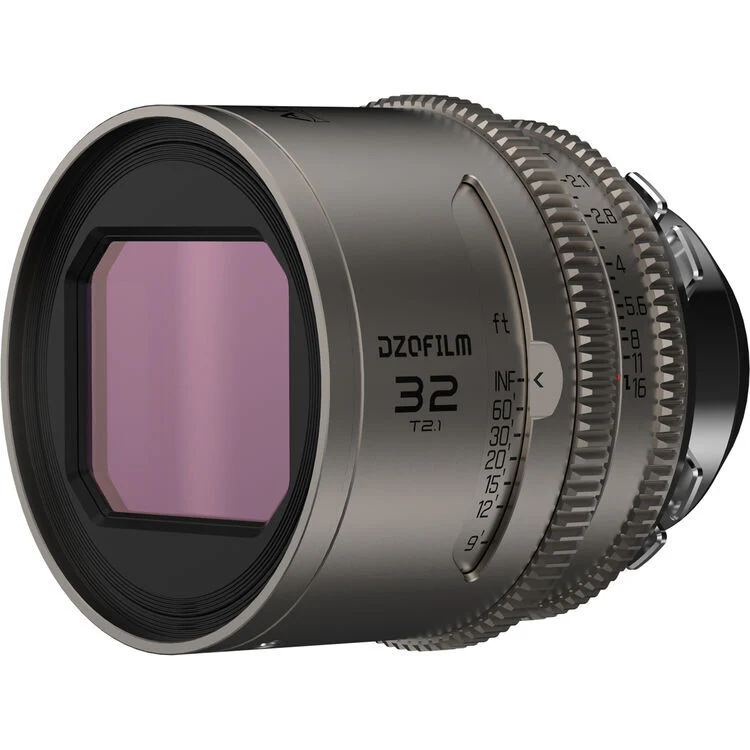

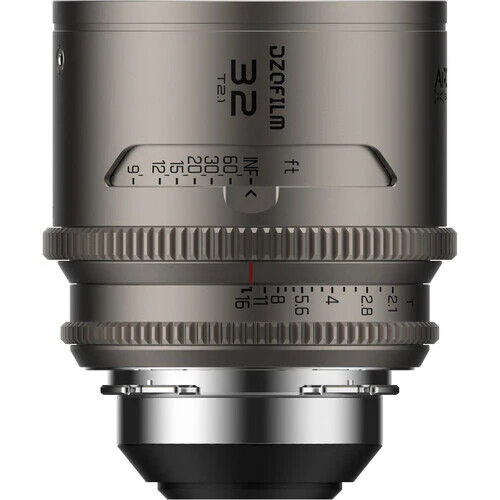

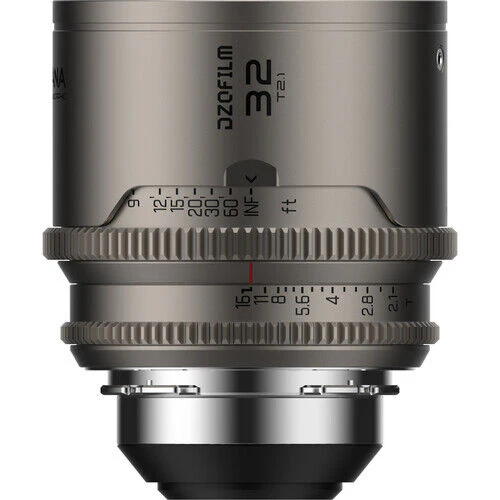

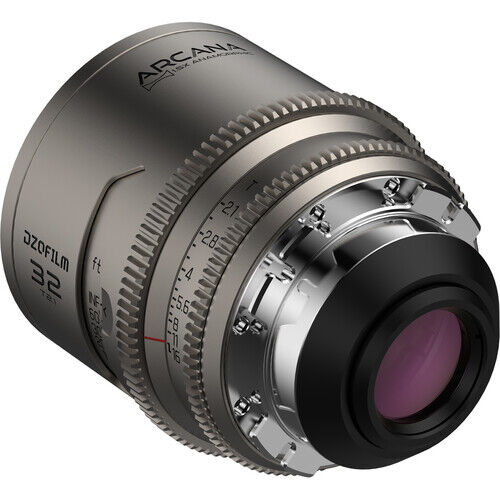

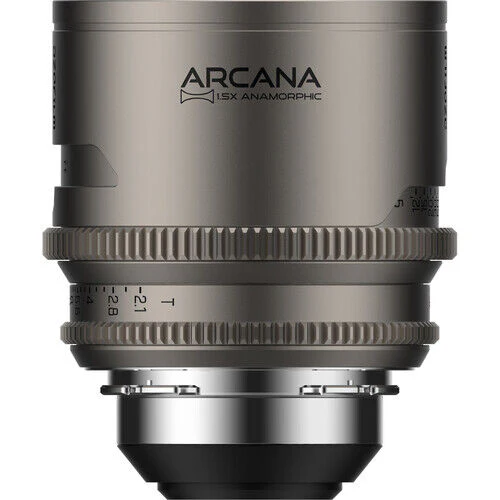

DZOFilm Arcana 32mm Anamorphic Prime Lens (ARRI PL, Titanium - Imperial)
Features
- Full Frame | T2.1-T16 Aperture Range
- Neutral Flare, Dramatic Oval Bokeh
- 1.5x Anamorphic Squeeze
- 0.8 MOD Gears / 270° Focus Rotation
- 80mm Front Outside Diameter
- High-Resolution Center, Sharp Edges
- 1.6' Minimum Focus Distance
- Refined Titanium Finish
- 77mm Filter Thread
- Compact Form, Consistent Series Design
Sharp 1.5x Anamorphic Coverage
The ARRI PL-mount Arcana 32mm Anamorphic Prime Lens from DZOFilm captures a widescreen look with dramatic oval bokeh and anamorphic flares that take on the color of your lighting source. This compact and lightweight cine-style lens provides a 1.5x anamorphic squeeze for full-frame cameras.
Impressive Image Quality
Each lens in the Arcana series uses cylinder, ED (extra-low dispersion), and high-refraction elements to produce an ideal balance between ultrahigh center resolution and edge-to-edge image sharpness.
Oval Bokeh and Flexible Flares
A special white coating enables the Arcana lenses to create flares that transmit the color of your lighting setup. Their 1.5x anamorphic squeeze produces oval bokeh with a more dramatic look than a 2.0x anamorphic lens.
Compact Form with Titanium Finish
Arcana 1.5x lenses are lightweight and compact, sharing near identical weights and lengths, letting you quickly and easily swap lenses on your camera or gimbal rig. Each lens has an 80mm front outside diameter and a 77mm filter thread, and it offers 270° focus rotation for precise focus pulls. A titanium finish lends a refined look to the Arcana lens series.
ARRI PL Mount
This lens comes with an ARRI PL mount, enabling you to use it with a variety of cine-style cameras.
Specs
| Focal Length |
32mm |
| Maximum Aperture |
T2.1 |
| Lens Mount |
ARRI PL |
| Lens Format Coverage |
Full-Frame |
| Filter Thread |
77 mm |
| Image Stabilization |
No |
| Electronic Communication |
No |
| Focal Length |
32mm |
| Maximum Aperture |
T2.1 |
| Minimum Aperture |
T16 |
| Lens Mount |
ARRI PL |
| Horizontal Squeeze (Anamorphic) |
1.5x |
| Flare Color |
Neutral |
| Lens Format Coverage |
Full-Frame |
| Focus Scales |
Imperial |
| Optical Design |
15 Elements in 13 Groups |
| Filter Thread |
77 mm |
| Minimum Focus Distance |
From Camera Sensor: 1.6' / 48 cm |
| Aperture/Iris Blades |
14 |
| Image Stabilization |
No |
| Gear Standard |
Focus, Iris: 0.8 MOD |
| Gear Rotation |
Focus: 270° |
| Electronic Communication |
No |
| Diameter |
Front: 3.1" / 80 mm |
| Length |
3.1" / 80 mm |
| Weight |
1.6 lb / 709 g |
Description
Features
- Full Frame | T2.1-T16 Aperture Range
- Neutral Flare, Dramatic Oval Bokeh
- 1.5x Anamorphic Squeeze
- 0.8 MOD Gears / 270° Focus Rotation
- 80mm Front Outside Diameter
- High-Resolution Center, Sharp Edges
- 1.6' Minimum Focus Distance
- Refined Titanium Finish
- 77mm Filter Thread
- Compact Form, Consistent Series Design
Sharp 1.5x Anamorphic Coverage
The ARRI PL-mount Arcana 32mm Anamorphic Prime Lens from DZOFilm captures a widescreen look with dramatic oval bokeh and anamorphic flares that take on the color of your lighting source. This compact and lightweight cine-style lens provides a 1.5x anamorphic squeeze for full-frame cameras.
Impressive Image Quality
Each lens in the Arcana series uses cylinder, ED (extra-low dispersion), and high-refraction elements to produce an ideal balance between ultrahigh center resolution and edge-to-edge image sharpness.
Oval Bokeh and Flexible Flares
A special white coating enables the Arcana lenses to create flares that transmit the color of your lighting setup. Their 1.5x anamorphic squeeze produces oval bokeh with a more dramatic look than a 2.0x anamorphic lens.
Compact Form with Titanium Finish
Arcana 1.5x lenses are lightweight and compact, sharing near identical weights and lengths, letting you quickly and easily swap lenses on your camera or gimbal rig. Each lens has an 80mm front outside diameter and a 77mm filter thread, and it offers 270° focus rotation for precise focus pulls. A titanium finish lends a refined look to the Arcana lens series.
ARRI PL Mount
This lens comes with an ARRI PL mount, enabling you to use it with a variety of cine-style cameras.
Specs
| Focal Length |
32mm |
| Maximum Aperture |
T2.1 |
| Lens Mount |
ARRI PL |
| Lens Format Coverage |
Full-Frame |
| Filter Thread |
77 mm |
| Image Stabilization |
No |
| Electronic Communication |
No |
| Focal Length |
32mm |
| Maximum Aperture |
T2.1 |
| Minimum Aperture |
T16 |
| Lens Mount |
ARRI PL |
| Horizontal Squeeze (Anamorphic) |
1.5x |
| Flare Color |
Neutral |
| Lens Format Coverage |
Full-Frame |
| Focus Scales |
Imperial |
| Optical Design |
15 Elements in 13 Groups |
| Filter Thread |
77 mm |
| Minimum Focus Distance |
From Camera Sensor: 1.6' / 48 cm |
| Aperture/Iris Blades |
14 |
| Image Stabilization |
No |
| Gear Standard |
Focus, Iris: 0.8 MOD |
| Gear Rotation |
Focus: 270° |
| Electronic Communication |
No |
| Diameter |
Front: 3.1" / 80 mm |
| Length |
3.1" / 80 mm |
| Weight |
1.6 lb / 709 g |
