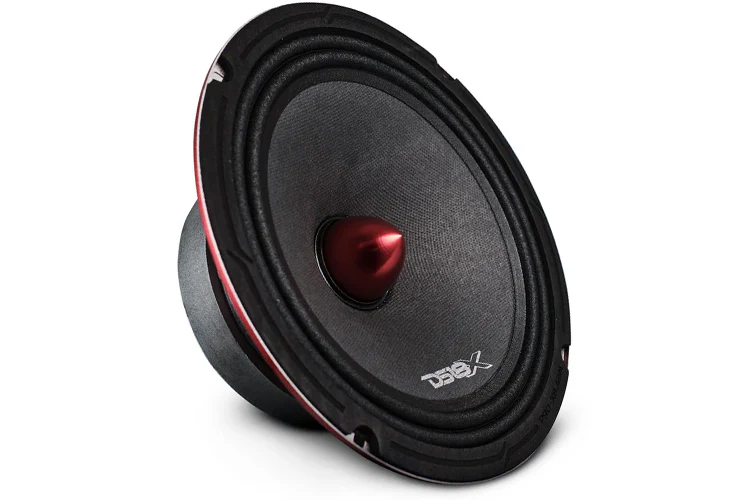

DS18 PRO-X8BM PRO-X 8" Mid-Range Bullet Loudspeaker Each

The DS18 PRO-X8BM delivers unmatched clarity right when you need it most. Engineered with a bullet resonator for enhanced projection and a rugged 8-ohm voice coil system, this 8" mid-range speaker is built for audio setups that demand performance without compromise.

Exceptional Clarity

Featuring a 1.5" high-temperature Kapton voice coil with CCAW winding, the PRO-X8BM is designed to handle intense output over extended sessions. With a powerful 97dB sensitivity and a frequency range of 115Hz to 16KHz, it delivers loud, precise, and clean sound that truly stands out.

Key Features:

• High-Temp Voice Coil
• Aluminum Bullet Tweeter
• 8-Ohm Load
• Steel Basket With Gloss Red Finish
• 97dB Sensitivity

Specifications:

• Nominal Diameter: 8" / 203mm
• Nominal Impedance: 8 Ohms
• Max Power Handling: 550 Watts
• RMS Power Handling: 275 Watts
• Sensitivity: 97dB
• Frequency Response: 115Hz €“ 16KHz
• Recommended Hi-Pass: 120Hz

COMPONENT SPECS:

• Voice Coil Diameter: 1.5" / 38.6mm
• Voice Coil Former Material: Kapton
• Winding Material: CCAW
• Cone Material: Non-Pressed Paper
• Basket Material: Steel
• Magnet Material: Ferrite
• Magnet Weight: 30 oz

THIELE & SMALL PARAMETERS:

• Vas: 13.7L / 0.486ft ³
• Xmax: 9.3mm
• Fs: 122Hz
• Qms: 9.645
• Qes: 0.98
• Qts: 0.889
• Re: 5.2 Ohms
