DD Audio DD-715D 15" Redline 700 Series 3600W Power Tuned Subwoofer D4

DD Audio Redline 700 Series 15" 3600 Watts Power Tuned Subwoofer: Designed For Serious Performance!

Designed & Engineered in the USA!

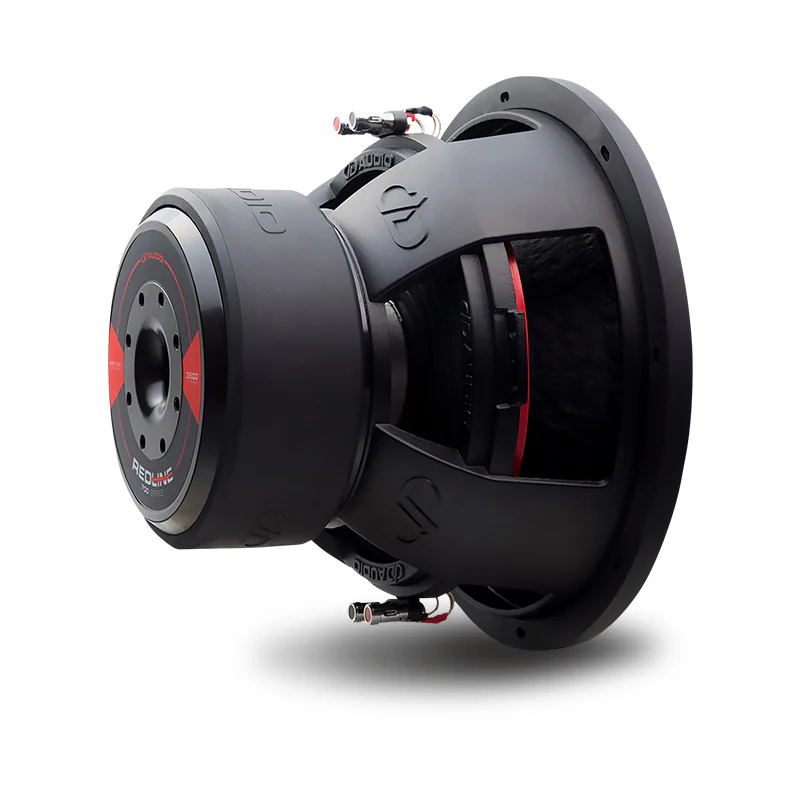

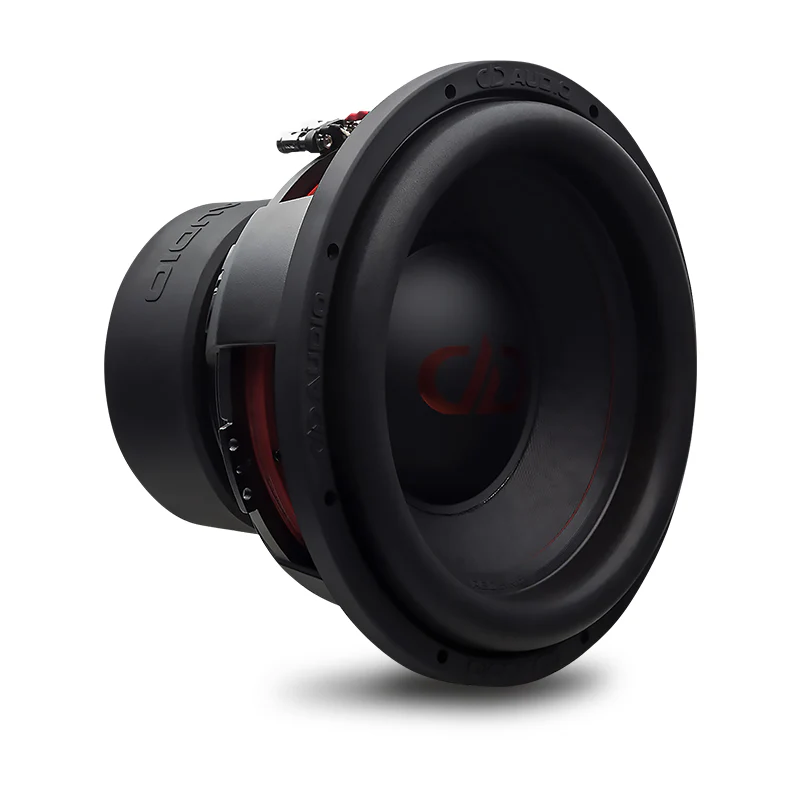

The 700 series is designed for serious performance The DD Audio 715D features a DD cast basket supporting a triple stack magnet motor, heavy duty suspension, and a high strength cone coupled to a massive EROM surround, making them best suited for duty in vented or multi-order enclosures.

Any DD Audio Product bearing the Marine Grade logo incorporates water resistant features enabling it to be used in applications where moderate exposure to moisture will not result in damage to the product. Marine Grade products are not waterproof, and submersion or excessive moisture exposure may result in product failure. DD Audio Marine Grade products are not certified for saltwater environments.

DD Audio 715D Features:

• EROM Surround
• High-Temp, 3.0”, Voice Coil
• Triple-Layer Deep Bass, High Excursion Spider System
• Unique Glass Fiber & Natural Pulp Cone
• Backplate Coil Gap Venting
• Extended Pole Piece
• DD Cast Basket

DD Audio 715D Specifications:

• Driver Size: 15″
• Watts RMS: 600 – 1200W
• Peak Power: 3600W
• VCD: 3
• Impedance: D2 / D4
• Piston Diameter: 12"
• FS: 1.63Hz
• QMS: 5.485
• QES: 0.5964
• QTS: 0.5379
• VAS: 70.17 Liters
• Xmech: 80mm
• Xmax: 16mm
• Frame OD: 15"
• Frame OD With Gasket: 15"
• Mounting Diameter: 13"
• Mounting Depth: 9"
• Motor Diameter: 7"
• Motor Depth: 3"
• Woofer Displacement: 0.22 Ft.
• Ported Enclosure: Cu. Ft. 3.0 – 5.0
• Weight: 19.50kg (43.0lbs)
