AIYIMA DAC-A2 Digital to Analog Audio Converter & Headphone Amplifier
Compact High-Fidelity Audio Decoding & Personal Amplification
The AIYIMA DAC-A2 is a versatile and budget-friendly Digital-to-Analog Converter (DAC) and headphone amplifier designed to enhance the audio quality of your PC, TV, or digital player. Featuring dedicated bass and treble controls, it allows for a customized listening experience while providing clean, high-resolution sound in a minimal desktop footprint.
- High-Resolution Decoding: Supports sampling rates up to 24-bit/192kHz via Optical/Coaxial and 24-bit/96kHz via USB for detailed, loss-less audio playback.

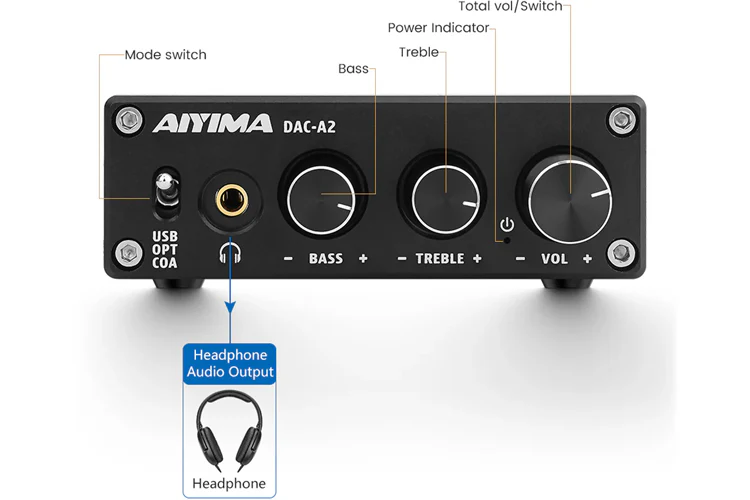

- Custom Tone Control: Equipped with independent Treble and Bass adjustment knobs (±6dB) to fine-tune the output to your personal preference or speaker/headphone characteristics.

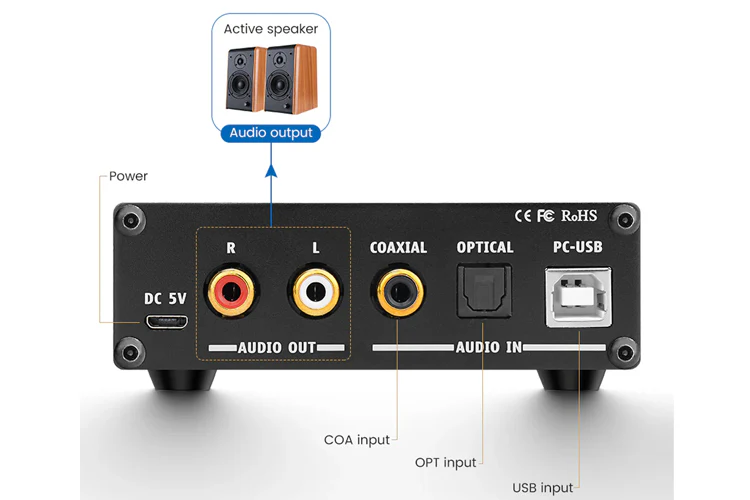

- Multiple Digital Inputs: Includes PC-USB, Optical, and Coaxial inputs, making it compatible with a wide range of devices including Windows/Mac/Linux systems, gaming consoles, and smart TVs.
- Dual Output Modes: Features high-quality gold-plated RCA outputs for connecting to active speakers or amplifiers, and a front-panel headphone jack for private listening.
- Smart Switching: Automatically disconnects the RCA analog output when a pair of headphones is plugged into the amp output for seamless transitions.
- Premium Build Quality: Housed in a sturdy, shielded metal chassis to prevent interference and ensure long-term durability.
Specification
- PC-USB Input Sampling Rate: 96kHz / 24-bit
- Optical/Coaxial Input Sampling Rate: 192kHz / 24-bit
- Headphone Output Power: 100mW @ 32Ω
- Headphone Impedance Range: 16 - 200Ω
- Frequency Response: 20Hz - 20kHz (±3dB)
- Signal to Noise Ratio (SNR): ≥105dB
- Total Harmonic Distortion (THD): 0.01%
- RCA Output Level: 2.3V
- Working Voltage: DC 5V (USB powered or external)
- Dimensions: 73.5 x 98 x 33 mm (excluding knobs)
-
What's in the Box:
- 1 x AIYIMA DAC-A2 Decoder
- 1 x PC-USB Cable
- 1 x User Manual
- Note: Power supply may be sold separately depending on the region/package.
